Features	Benefits
Bigger and wider tire dimension	Ability to perform in extreme condition
More aggressive pattern with wider thread	Enhance traction and braking performance in all conditions, especially in muddy and rocky conditions
More robust tire construction	Minimize tire deformation, for heavy duty and longer mileage
Special tire compound	Better grip for better performance

Features	Benefits
Special pattern design on shoulder	Optimize stress distribution on road-contacted area
Adoption of variable angle on groove edge	Improve tire abrasion performance
Wider tread design	Enhance tire life

TIRE SIZE	PR	LOAD INDEX	SPEED RATING	APPROVED RIM	OUTER DIAMETER (mm)	MAX. LOAD (KG)	MAX. PRESSURE (PSI)	TREAD DEPTH (mm)
8.25R20	14PR	135/131	M	6.5	971	2205/1940	120/110	15.0
9.00R20	16PR	144/142	K	7.0	1019	2800/2650	130/130	16.5
11.00R20	16PR	149/145	K	8.0	1085	3270/2870	115/115	16.5
7.50R16 LT	14PR	122/118	M	6.00G	805	1500/1320	110/110	12.5
8.25R16 LT	16PR	128/124	M	6.50H	855	1800/1600	110/110	12.5

Features	Benefits
Wide footprint with wide shoulder design	Designed for usage in both traditional long haul and regional usage conditions
Redesigned casing construction	Provides an optimized road surface footprint for regular wear and improved mileage
Low Noise level	Silent and comfortable drive

Size	PR	Load Index	Speed Rating	Standard Rim	Max load (kg)	Max pressure (psi)	Depth (mm)	Diameter (mm)	Section width	TT/TL
7.50R20	14PR	130/128	K	6	1900/1800	120/120	13	935	215	TT
8.25R20	14PR	136/134	K	6.5	2240/2120	120/120	14	974	236	TT
9.00R20	16PR	144/142	K	7	2800/2650	130/130	14.5	1019	259	TT
8R22.5	14PR	130/128	M	6	1900/1800	120/120	12.9	935	203	TL
9R22.5	14PR	136/134	M	6.75	2240/2120	120/120	13.8	974	229	TL
10R22.5	16PR	144/142	M	7.5	2800/2650	130/130	14.8	1019	254	TL
255/70R22.5	16PR	140/137	M	7.5	2500/2300	120/120	14.8	930	255	TL

Features	Benefits
Sidewall Protector rib	Protects casing and sidewall from road hazard damages and road curb damages.
Zig-Zag groove and multiple angle sipes	Provides excellent traction and prevents anti-skidding on wet surfaces.
Wider Tread with Deeper Grooves	Enhances Tire Life
Wear resistant compound for urban bus operation that require high frequency of stop and go and turning operation.	Excellent long wear performance to match the needs of the operations.
Equal-force casing technology.	Uniform force distribution for an optimal tyre footprint at various load levels for regular wear and longer mileage.
Tyre casing design for retreadability.	Higher retreadability for longer tire operating life.

Tire Size	LI	SI	ETRTO	Standard RIM	Section Width (mm)	Overall Diameter (mm)	Tread Depth (mm)	Max Load(kg)
11R22.5	148/145	J	–	–	–	1054	18.7	3150/2900
275/70R22.5	148/145	J	–	–	–	958	18.7	3350/2900
295/80R22.5	152/148	J	–	–	–	1050	18.7	3550/3150

Features	Benefits
Tread with 4 main grooves	Provides excellent grip on both dry and wet surface
High tread rigidity	Provides maximum load carrying capacity and excellent riding stability at both maximum load condition and empty conditon
Special compound	Increases traction and long lasting

SIZE	DESIGN	RIM	MAX LOAD (kg)
SIZE	DESIGN	RIM	S	D
500 X 12 8PR	GT MILER SUPER 88N	3.5	485	465
640 X 13 8PR	GT MILER SUPER 88	5.0	750	710
600 X 14 8PR	GT MILER SUPER 88N	4.5	750	710
650 X 14 8PR	GT MILER SUPER	4.5	840	795
700 X 14 8PR	GT MILER SUPER	5.0	785	750
650 X 15 8PR	GT MILER SUPER	4.5	875	835
700 X 15 10PR	GT MILER SUPER 88N	5.5	1,060	925
700 X 15 12PR	GT MILER SUPER 88N	5.5	1,180	1,120
750 X 15 12PR	GT MILER SUPER 88N	6.0	1,385	1,315
650 X 16 10PR	GT MILER SUPER 88	5.5	1,010	960
700 X 16 10PR	GT MILER SUPER 88N	5.5	1,100	965
700 X 16 12PR	GT MILER SUPER 88N	5.5	1,225	1,075
750 X 16 12PR	GT MILER SUPER 88N	6.0	1,440	1,370
750 X 16 14PR	GT MILER SUPER 88N	6.0	1,510	1,440
825 X 16 14PR	GT MILER SUPER 88N	6.5	1,710	1,630
825 X 20 14PR	GT MILER	6.5	2,030	1,930
900 X 20 14PR	GT MILER 88N	7.0	2,415	2,300
1000 X 20 16PR	GT MILER	7.5	3,000	2,650
1100 X 20 16PR	GT MILER 88N	8.0	3,350	2,900

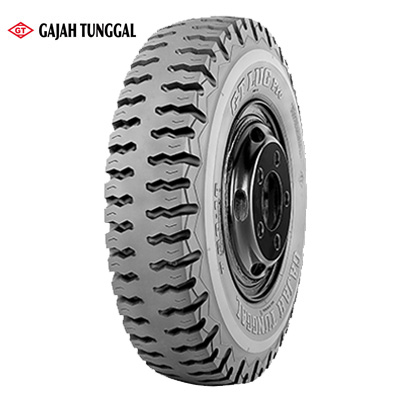

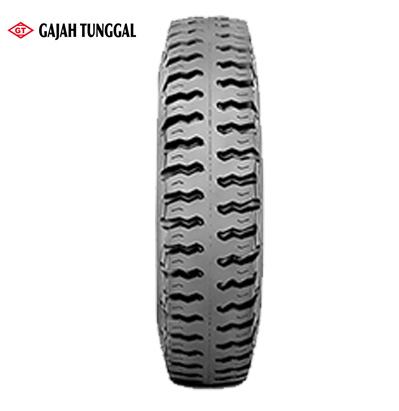

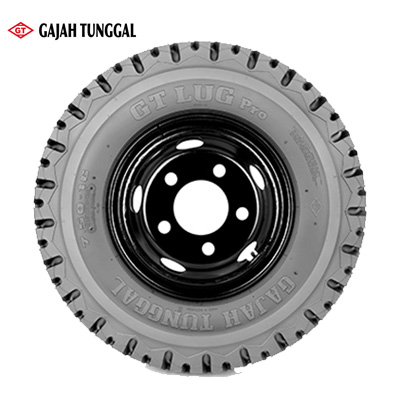

GT Lug Pro

SPECIFICATIONS
