Features	Benefits
Directional inter-lock lug pattern design	Provides strong grip and maximum stability for heavy duty application
Wide and extra heavy tread	Highly resistant to tearing, cutting and snagging by rock
Open shoulder tread	Good traction and quick mud self cleaning ability
Brand: Gajah Tunggal

SIZE	DESIGN	RIM	MAX LOAD (kg)
SIZE	DESIGN	RIM	S	D
1000 X 20 16PR	GT SUPER GRIP	7.5	3,000	2,650
1100 X 20 16 PR	GT SUPER GRIP	8.0	3,350	2,900
1200 X 24 18PR	GT SUPER GRIP	8.5	4,250	3,750
1200 X 24 20PR	GT SUPER GRIP	8.5	4,415	3,875
1200 X 20 18PR	GT SUPER GRIP	8.5	3,750	3,350

Features	Benefits
Four belt construction	Increases casing and tread stiffness, minimizing tire deformation for longer wear
Advanced Equal Force Casing technology	Uniform force distribution enables optimal tire footprint at various loads level thus result in regular tread wear
Widened tread layout	Large tread volume for extended wear life
Giti specially-formulated tread compound	Improved wear resistance of tread
Resilient four vertical groove and zig-zag bottom design	Provides better handling and controllability of vehicle
Mutiple sipes along the side of groove	Self cleaning capability and higher resistance to damage from road hazards
Tire casing designed for retreadability	Higher retreadable capabilities
FEA bead construction optimization concept for bead construction	Optimizes and uniformly distributes load pressure to the bead, minimizing damage

Size	PR	Load Index	Speed Rating	Standard Rim	Max load (kg)	Max pressure (psi)	Depth (mm)	Diameter (mm)	Section width	TT/TL
245/70R19.5	16	136/134	M	7.5	2240/2120	120/120	14	839	248	TL
265/70R19.5	16	140/138	M	7.5	2500/2360	115/115	14	867	262	TL
285/70R19.5	16	146/145	M	8.25	3000/2900	130/130	14.5	895	283	TL
11R22.5	16	148/145	M	8.25	3150/2900	123/123	15.3	1054	279	TL
12R22.5	18	152/149	L	9	3550/3250	135/135	15.8	1085	300	TL
275/80R22.5	16	149/146	L	8.25	3250/3000	123/123	16.2	1018	276	TL
295/80R22.5	18	154/149	M	9	3750/3250	123/123	16.5	1044	298	TL
315/80R22.5	18	158/150 (154/150)	L(M)	9	4250/3350	131/131	16.8	1076	312	TL
275/70R22.5	16	148/145 (152/148)	M(J)	8.25	3150/2900	130/130	15	958	276	TL
315/70R22.5	18	156/150 (154/150)	L(M)	9	4000/3350	131/131	15.5	1014	312	TL
315/60R22.5	20	154/148	L	9.75	3750/3150	131/131	13.5	950	313	TL

Features	Benefits
Sidewall Protector rib	Protects casing and sidewall from road hazard damages and road curb damages.
Zig-Zag groove and multiple angle sipes	Provides excellent traction and prevents anti-skidding on wet surfaces.
Wider Tread with Deeper Grooves	Enhances Tire Life
Wear resistant compound for urban bus operation that require high frequency of stop and go and turning operation.	Excellent long wear performance to match the needs of the operations.
Equal-force casing technology.	Uniform force distribution for an optimal tyre footprint at various load levels for regular wear and longer mileage.
Tyre casing design for retreadability.	Higher retreadability for longer tire operating life.

Features	Benefits
Interlocking wide block pattern arrangement with open shoulder and sidewall protector rib	Good self cleaning properties with improved resistance to tread tearing, heal and toe wear and curbing and impact damage

Tire Size	LI	SI	ETRTO	Standard RIM	Section Width (mm)	Overall Diameter (mm)	Tread Depth (mm)	Max Load(kg)
10R22.5	141/139	M	–	–	–	–	–	–
11R22.5	148/145	M	–	–	–	1054	17.2	3150/2900
11R24.5	149/146	M	–	–	–	1104	17.2	3250/3000
12R22.5	152/148	M	–	–	–	1085	17.2	3550/3150
295/80R22.5	152/148	M	–	–	–	1044	16.3	3550/3150
315/80R22.5	154/151	M	–	–	–	1076	17.5	3750/3450

Features	Benefits
Tread with 4 main grooves	Provides excellent grip on both dry and wet surface
High tread rigidity	Provides maximum load carrying capacity and excellent riding stability at both maximum load condition and empty conditon
Special compound	Increases traction and long lasting
Brand: Gajah Tunggal

SIZE	DESIGN	RIM	MAX LOAD (kg)
SIZE	DESIGN	RIM	S	D
500 X 12 8PR	GT MILER SUPER 88N	3.5	485	465
640 X 13 8PR	GT MILER SUPER 88	5.0	750	710
600 X 14 8PR	GT MILER SUPER 88N	4.5	750	710
650 X 14 8PR	GT MILER SUPER	4.5	840	795
700 X 14 8PR	GT MILER SUPER	5.0	785	750
650 X 15 8PR	GT MILER SUPER	4.5	875	835
700 X 15 10PR	GT MILER SUPER 88N	5.5	1,060	925
700 X 15 12PR	GT MILER SUPER 88N	5.5	1,180	1,120
750 X 15 12PR	GT MILER SUPER 88N	6.0	1,385	1,315
650 X 16 10PR	GT MILER SUPER 88	5.5	1,010	960
700 X 16 10PR	GT MILER SUPER 88N	5.5	1,100	965
700 X 16 12PR	GT MILER SUPER 88N	5.5	1,225	1,075
750 X 16 12PR	GT MILER SUPER 88N	6.0	1,440	1,370
750 X 16 14PR	GT MILER SUPER 88N	6.0	1,510	1,440
825 X 16 14PR	GT MILER SUPER 88N	6.5	1,710	1,630
825 X 20 14PR	GT MILER	6.5	2,030	1,930
900 X 20 14PR	GT MILER 88N	7.0	2,415	2,300
1000 X 20 16PR	GT MILER	7.5	3,000	2,650
1100 X 20 16PR	GT MILER 88N	8.0	3,350	2,900

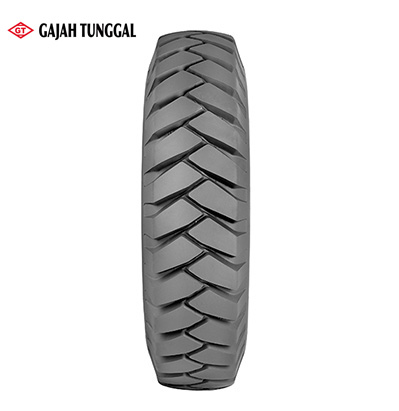

GT Super Grip

SPECIFICATIONS
